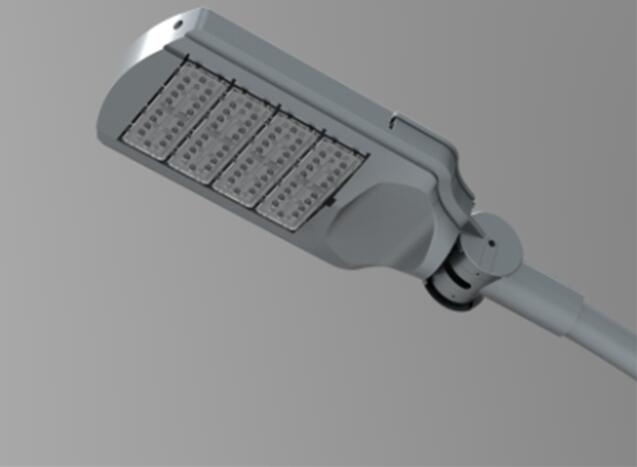

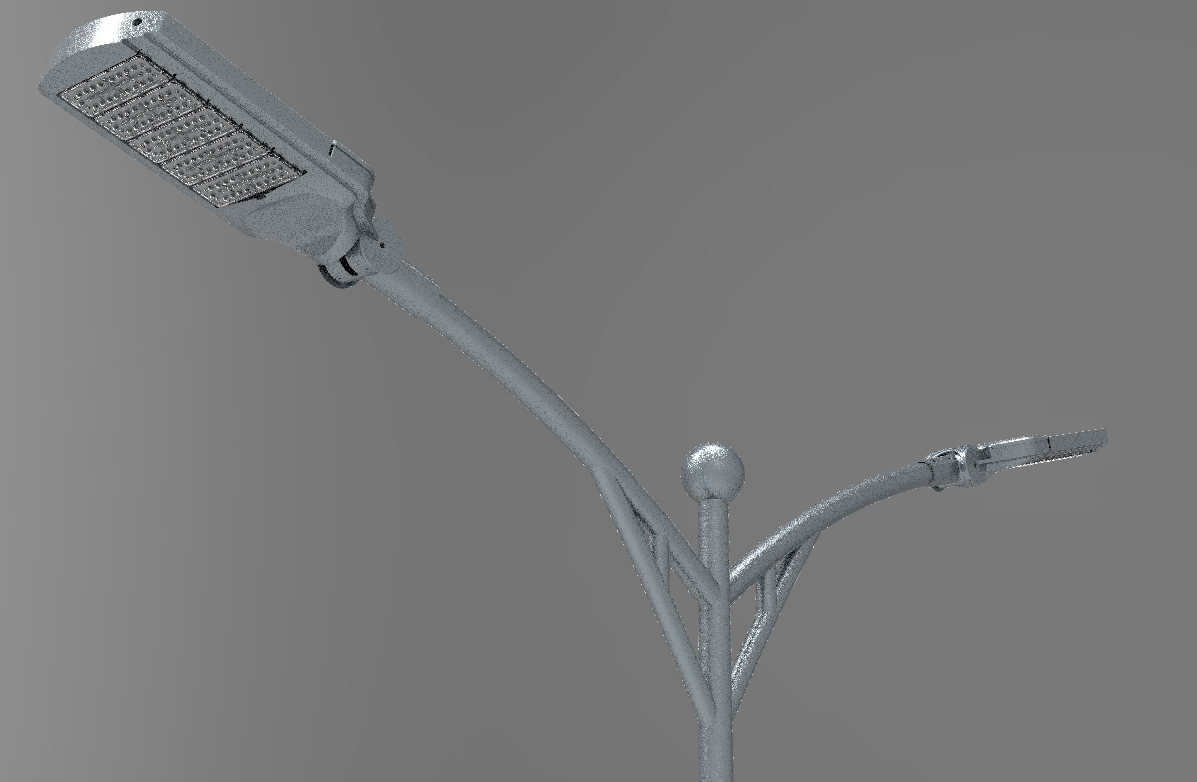

New Style 100W Outdoor LED Street Light
Previous: Top Quality 120W Outdoor LED Street Light
Next:This is the last one
JY-SL03

New Style 100W Outdoor LED Street Light Specification

Product Name
100W LED Street Light—LED Lamp
LED Source Power 100W /
LED Qty(pcs) 100pcs (¢3030 led chip) Philips brand with good quality
Color Temperature(CCT) 6500/4500/3200K Warm/white color/any requires
THD < 15%
Color Rendering Index > 70 Ra
Luminous Flux 13000--14000(lm)
Luminous Efficiency >,= 130~ 140lm/W Can make > 130 lm/W;(at the lighting fixture now)
LED Source Lifetime > 50000H
Input Voltage 36V
Input Current 0.56a
Output Voltage 270V
Frequency Range 50/60HZ
Working Temperature  -25~50℃
Body Material Die-Casting Aluminum
LED source Protection Level IP67
Humidity of Working Condition 10%~90%
Eifficiency of the Lamp 90%
Power Factor >0.9
Product Size:
776*350*108mm/pcs
Packing Box Size
776*350*108mm/pcs
N.W / G.W (KG) 6.3kg  /  6.8kg
Protection Level IP67
Certificate CE,RoHS
Warranty time 3 years
